JINPAT LPPLM Series Multi-Channel Gas and Fluid Slip Rings: High-Efficiency Application in Turret-Type Handling Machinery

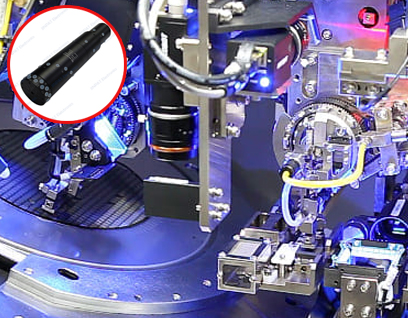

In modern automated warehousing, logistics sorting, and flexible manufacturing systems, turret-type handling machinery has become a core handling equipment due to its high speed, high precision, and high space utilization. Its rotating turret head needs to stably supply various fluid media to multiple end effectors during continuous high-speed rotation. Traditional solutions using rotary air hose reels or slip rings with independent rotary joints suffer from problems such as rapid wear, hose entanglement, difficult maintenance, and large space requirements. The JINPAT LPPLM series multi-channel gas and fluid slip ring is designed to address these core pain points, and its application is crucial for improving the overall performance of the equipment.

Product Features and Application Analysis

High-Density Multi-Channel and Media Compatibility: This slip ring provides up to 24 independent channels, each using a standard M5 internal thread interface for easy connection and integration. Its core advantage lies in its excellent media versatility, capable of safely and reliably transmitting compressed air, vacuum, and various inert gases (such as nitrogen). On turret-type handling machinery, this design allows for the centralized supply of power sources and vacuum required by end effectors (such as suction cups and grippers) through the rotary joint, or provides protective gases for special processes, greatly simplifying the complex piping layout of the rotating part.

Compact Segmented Structural Design: The segmented housing design achieves an extremely compact size and lightweight structure. This feature is crucial for turret-type handling machinery where space is limited and the inertia and volume of rotating parts are highly sensitive. The lightweight structure reduces the rotational drive load, helping to improve the operating speed and positioning accuracy of the equipment; at the same time, the modular design facilitates installation, maintenance, and flexible arrangement in limited space, ensuring the optimization of the overall equipment design and efficient and stable operation.

 JINPAT LPPLM series pneumatic and hydraulic slip rings feature a high-density multi-channel configuration and an innovative compact segmented structure, addressing the need for transmitting multiple pneumatic and hydraulic media in the rotating units of turret-type handling machinery. While ensuring interface compatibility and functionality, they significantly improve equipment space utilization, dynamic performance, and reliability.
