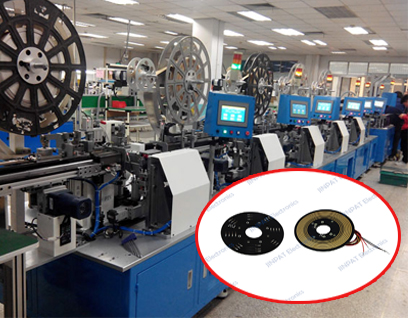

JINPAT Pancake Slip Ring – 14mm Ultra-Thin Size

Faced with the dual challenges of equipment miniaturization and functional complexity, traditional connection methods often become bottlenecks. The development of the JINPAT LPK series pancake slip ring aims to solve this key problem: how to achieve continuous and stable 360° transmission of power and high-definition signals (especially video signals) within extremely limited space, thus opening up new possibilities for automated equipment design.

Two Core Technological Advantages and Applications:

Advantage 1: Reliable High-Definition Video Signal Transmission Channel

This slip ring integrates a transmission channel optimized for video signals, compatible with multiple formats such as HDMI and Camera Link.

Application Value: As the "nerve center" of rotating vision systems, online inspection equipment, and PTZ monitoring systems, it ensures that the machine's "eyes" maintain a clear and stable "field of vision" during rotation.

Advantage Two: 14mm Ultra-Thin Design

The flattened structure compresses the installation height to 14mm, easily integrating into compact equipment spaces.

Application Value: Saving valuable structural space in space-sensitive applications (such as collaborative robot joints, precision rotary tables, and semiconductor processing equipment) directly contributes to smaller, more integrated equipment designs.

In short, the JINPAT LPK series pancake slip rings are not just connecting elements, but also a practical and ingenious engineering solution that effectively solves the challenge of balancing high performance and compactness in traditional solutions.

Call to Action: If you are looking for the best solution for signal transmission and space layout of rotating components in your equipment, the JINPAT LPK series is a reliable choice. Please contact our technical team for customized selection support.
