How Do JINPAT Customized High-Current Slip Rings Ensure the Long-Term, Stable Operation of Stackers?

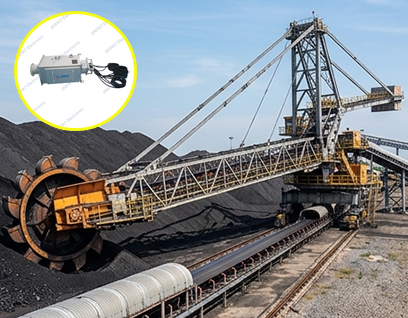

Power Transmission Challenges Faced by Large-Scale Stackers:

Stackers often need to carry currents reaching thousands of amperes to drive their powerful main motors and auxiliary systems. Furthermore, the complex environment of port operations—characterized by salt spray, dust, vibration, and prolonged continuous operation—imposes extremely rigorous demands on a slip ring's conductivity, wear resistance, and environmental adaptability.

JINPAT  Customized Solution:

To address the unique operating conditions of large-scale stackers, JINPAT has introduced a tailor-made high-current slip ring featuring a carbon brush structure. This product is not a generic, off-the-shelf model; rather, it is designed according to specific client specifications to ensure a perfect match with the specific equipment's electrical parameters (current, voltage, signal type), mechanical interfaces, and environmental requirements.

Core Technology: The Classic Carbon Brush Structure

This slip ring employs a carbon brush structure. JINPAT carefully selects special carbon materials—renowned for their high conductivity and exceptional wear resistance—to serve as the brushes. These are paired with an optimized brush holder design to ensure that the carbon brushes maintain consistent, reliable contact with the conductive rings even during high-speed rotation. The carbon brush structure possesses inherent self-lubricating properties and is capable of withstanding significant current surges and instantaneous temperature spikes, making it ideally suited for high-capacity power transmission scenarios such as those found in stackers.

How Are Ultra-Long Service Life and Ease of Maintenance Achieved?

Ultra-Long Service Life Design: Through specialized surface treatments applied to both the carbon brushes and the conductive rings, combined with precise structural optimization, JINPAT slip rings significantly reduce the rate of wear while simultaneously ensuring superior conductivity. Rigorous testing has demonstrated that these products possess an extended service life, capable of meeting the demands of large-scale equipment requiring tens of thousands of hours of continuous operation—thereby substantially lowering long-term operating costs for the user.

Minimal Maintenance: Ease of maintenance is one of the core design philosophies at JINPAT. This slip ring features an intuitive wear monitoring mechanism that enables simple and rapid carbon brush replacement—requiring no complex tools—and can be performed directly on-site at the port. This significantly reduces maintenance downtime, thereby ensuring the efficient operation of the port.
