Optimizing Cable Reel Performance: JINPAT Compact Slip Ring with Integrated High-Frequency Functionality

With the rapid development of Vietnam's manufacturing industry, automation components require high precision and reliability—especially in humid coastal environments and busy factory workshops. JINPAT  hollow shaft slip rings meet this demand.



Reasons for Choosing JINPAT:

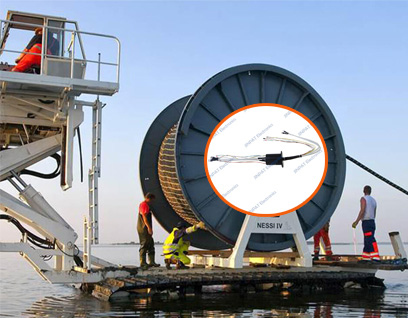

This device excels in cable reel applications through the compact integration of multiple circuits and a high-frequency channel. This space-efficient design is ideal for modern machinery where time is of the essence.



Performance under Vietnamese climatic conditions:



Operates at relative humidity below 88% RH



Operates normally in temperatures ranging from -40℃ to +80℃



IP51 protection rating provides necessary moisture protection



Technical oversight, quality assurance:



Gold-to-gold contacts ensure signal integrity; contact resistance fluctuation ≤70mΩ during operation. Insulation resistance of the power circuit is 1000MΩ at 500VDC, and the rated voltage of the signal circuit is 300VAC@50Hz.



Flexible installation:



- Specifications: AWG16#/AWG20# precision cable



Stator flange mounting for easy and quick integration



Precise lead lengths: Rotor 650±10mm, Stator 300±5mm



Operating speed: 0~250rpm



Contact material is made of aluminum alloy and sandblasted and anodized for excellent corrosion resistance. The contact materials utilize a precious metal structure, and the signal circuitry employs a full gold-on-gold process, ensuring reliable communication even in harsh environments.



Whether it's river port cranes in Ho Chi Minh City or automated production lines in Hanoi, this solution minimizes maintenance while extending equipment lifespan. Vietnamese original equipment manufacturers (OEMs) will gain access to a high-performance rotary solution that provides stable power and signal transmission, suited to demanding industrial environments.
